Parallel Type Air Grippers

Low Profile Air Gripper MHF2

    ・Height dimension reduced to approximately 1/3
    ・Low profile design that reduces moment generation
    ・Short, middle, and long strokes are available.
    ・Compact, but the double piston mechanism provides it with a strong gripping force.
    ・An actuator position sensor compatible type has been added.
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
    2D CAD
    Click here for 2D CAD
  • Low Profile Air Gripper MHF2
    Manual
    Series View search result
    MHF2 View search result
Safety Instructions　 Air Grippers/Precautions　 Auto Switches/Precautions　 Air Grippers Series Variations/Model Selection　 Quick Selection Table　 Made to Order Air Gripper　 Green Procurement (RoHS)　
Series Cylinder bore size (mm)
MHF2 8，12，16，20

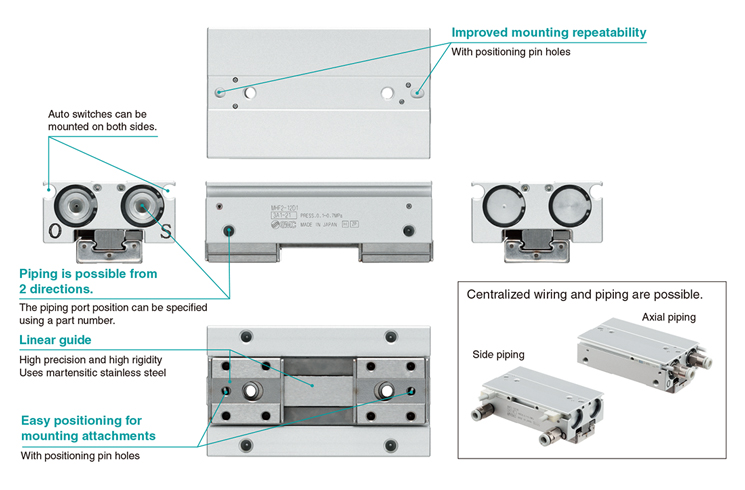

Features

Height dimension reduced to approximately 1/3 with the same gripping force as the MHZ2-20

Compact: Height reduced by 66%

72.8 mm → 25 mm (Comparison between the MHF2 (ø12) and the MHZ2 (ø20))

Stroke selection is available.

3 standard stroke lengths are available for each bore size.
The stroke can be selected according to the workpiece.

Actuator Position Sensor Compatible Type

Features

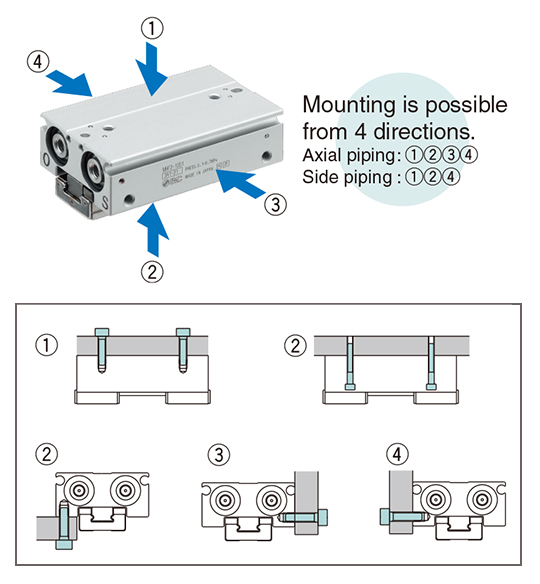

  • High degree of mounting flexibility

    As no brackets are required, the mounting height can be minimized.

  • Strong gripping force

    The double piston construction allows for a compact design with strong gripping force.
